Tilt & Turn - Aluminium-clad Inward Opening Timber Windows

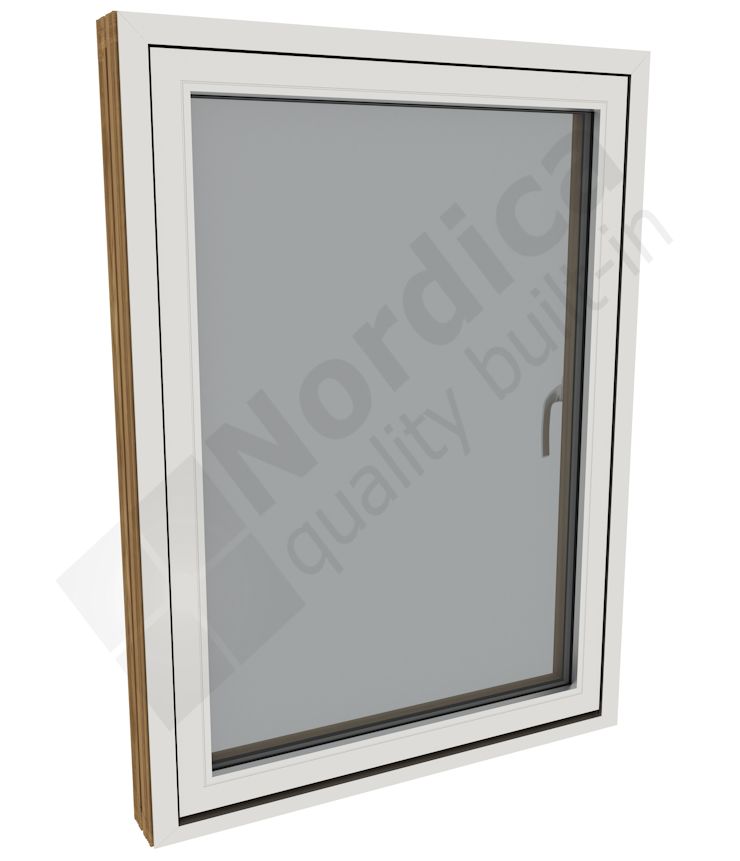

The Aluminium-clad Inward opening Nordica Tilt & Turn Timber is a range of windows designed to a German frame profile. Utilising all the protective benefits of aluminium external protection - reducing maintenance and upkeep to a minimum whilst offering a contemporary and attractive appearance.

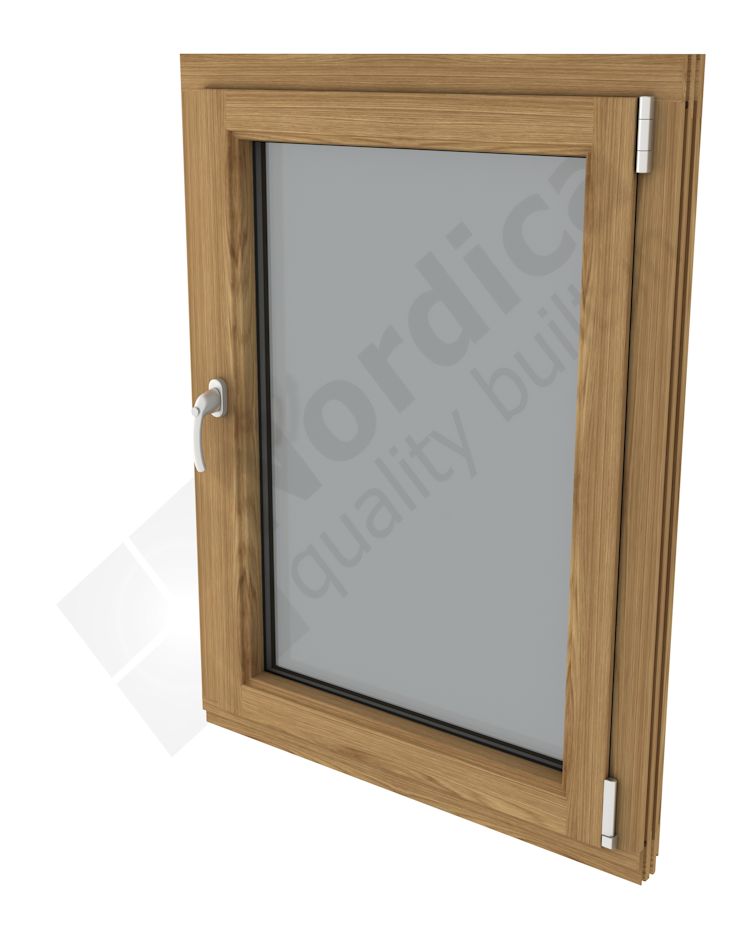

The tilt and turn window incorporates a dual function handle, the mechanism allows for "tilt" ventilation at the top of the sash and a "turn" function to open the sash inwards. This practical design can be utilized for many design possibilities.

Overview

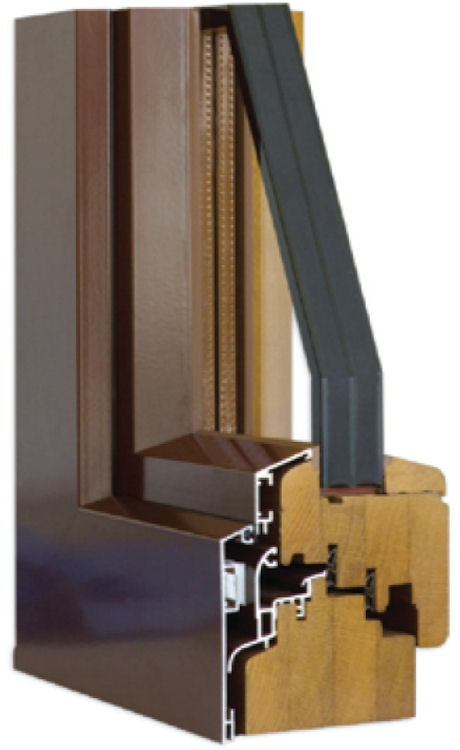

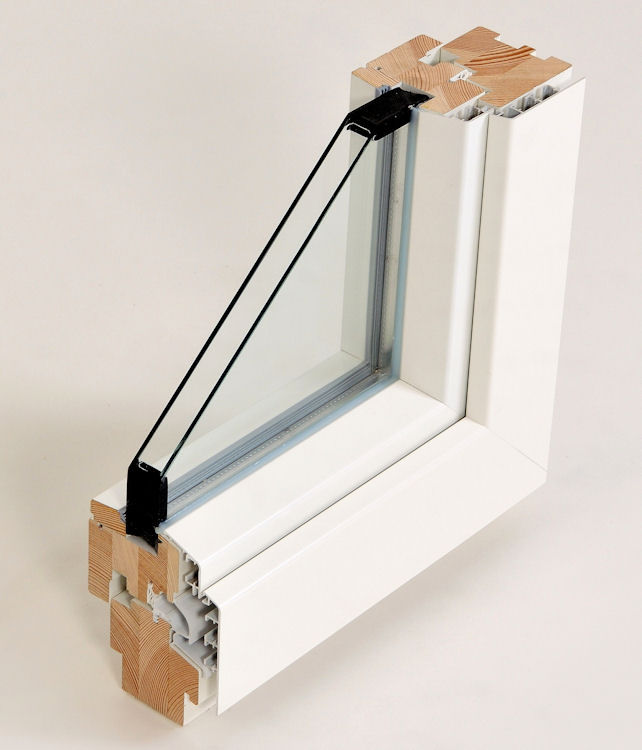

Aluminium-clad timber composite window.

Timber manufactured from preservative treated laminated Scandinavian slow-grown Redwood. Also available in hardwoods: Oak or Meranti

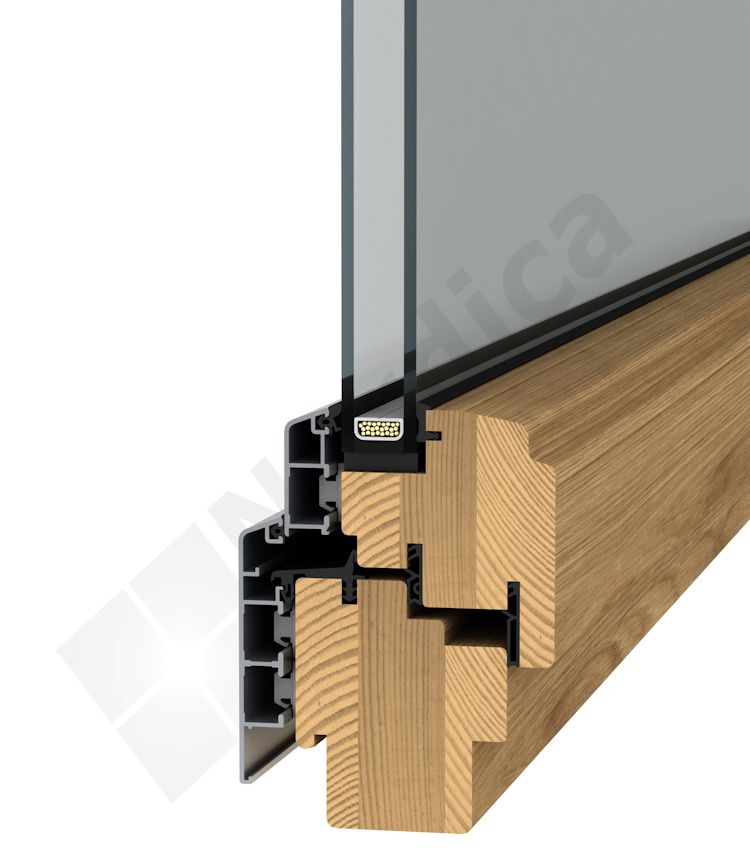

All timber is manufactured from engineered laminated profiles to ensure structural integrity and durability.

Factory finished two-coat micro-porous paint or stain.

Factory fitted double or triple-glazing.

Multi-point espagnolette locking.

Internally beaded, with hidden nailing, for enhanced security.

Models

Turn before Tilt

Handle turns 90° to open inwards to allow safe cleaning of the window from the inside. Turn the handle 180° to operate the tilt ventilation function. Turn first is the standard model for this range.

Tilt before Turn

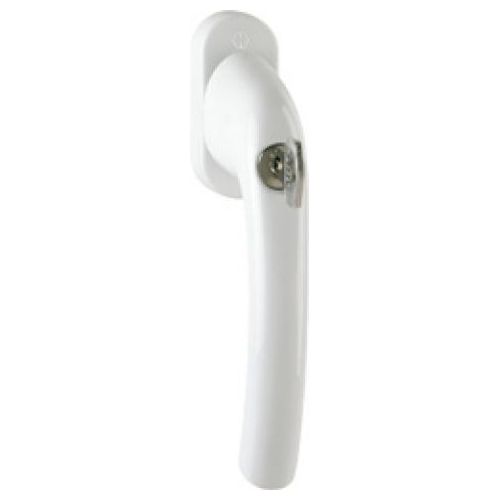

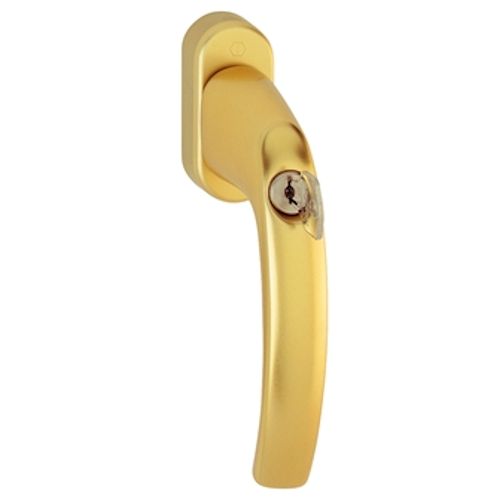

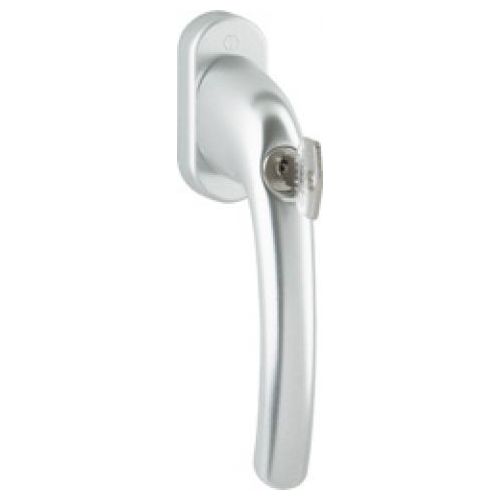

Handle turns 90° to tilt the window sash. Turn the handle 180° to operate the turn function. Using the Tilt first option allows the use of a safety restrictor handle which opens the tilt ventilation function, but requires a key to use the turn function - thus keeping the window secure.

Tilt only

The window tilts inward from the top only. A useful choice if a ventilation option is required with no full opening.

Turn only

Ideal for fire escape windows.

Other options

Fixed windows and screens

Inward opening Balcony, and French doors are also available as aluminum-clad composite models.

Tilt and Slide Patio Doors and Inward Opening Folding Doors also utiltises the same profile.

Glazing choices

Standard - Double-glazed units with soft-coat low-e and Argon gas filling with a centre-pane u-value of 1.1W/m2K. In addition specifying the latest "Warm Edge" spacers' technology for the glazing unit can further reduce the whole window U-value.

Triple-glazing is available in the same opening options with very good thermal resistance properties - giving a whole window U-value of 0.95 W/m�

Safety glass can be provided either as toughened; or a laminated glass can be added for enhanced safety and security.

Obscure glass can offered in sandblasted or in a variety of decorative glass for extra privacy.

Other specialist glazed units incorporating solar control, acoustic, and self-cleaning are available.

Glazing bars

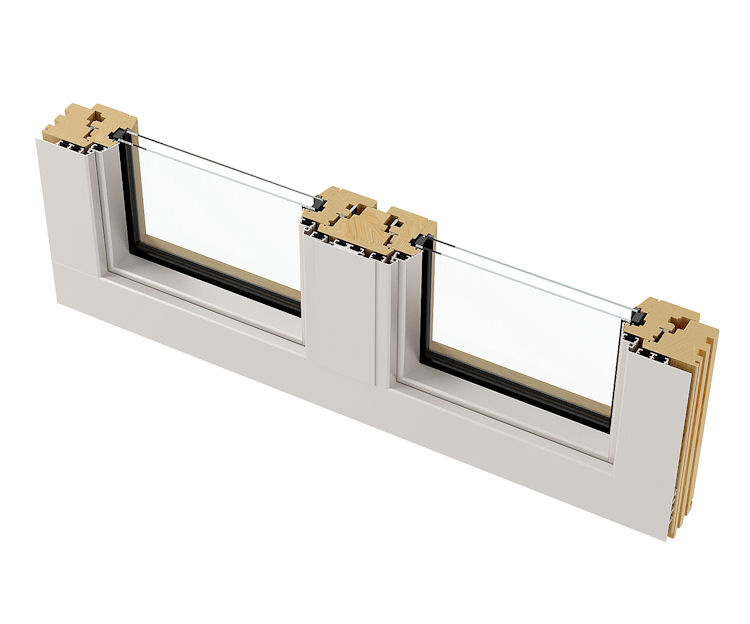

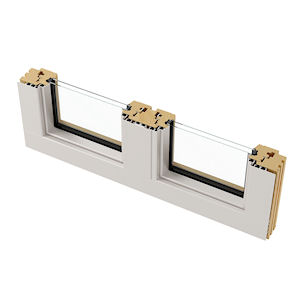

Glass dividing tenon-jointed or structural bars - transoms (horizontal) or mullions (vertical). These are used between opening sashes and fixed lights, or to create a more generous or substantial appearance to a design. Externally, the bar is aluminium-clad to provide permanent protection.

Decorative glazing bars are a slimmer, more elegant answer to those who wish to create a a traditional appearance. With timber glazing bars inside and aluminium outside, with internal spacer bars between the glass. This gives the appearance of panes created from separated glazed units, as it would have been done traditionally.
